Noisy 3D Reconstruction

As a final tutorial, we demonstrate how to estimate the covariance oprator of random 3D function, under measurement noise and functional randomness.

Data Generation

Setup Global Parameters

Due to computational complexity, we fix $\gamma=6$ from the previous tutorial.

n = 30       # Single Deterministic Function
r = 5      # Number of quaternions
s = 20      # Number of evaluation points per viewing angles
m = 50      # Resolution for reconstruction
L = 4       # Number of Gaussian components in the phantom
λ = 0.2    # Covariance level for weights
σ = 0.01   # Noise level
gamma_val = 6.0    # Kernel bandwidth for RKHS framework

3D Phantom and X-ray Transform

using HeteroTomo3D, BlockArrays, LinearAlgebra

centers = [
    (0.3, 0.3, 0.3),
    (-0.3, -0.3, 0.3),
    (-0.4, 0.4, -0.4),
    (0.3, -0.3, -0.3)
]
gammas = [5.0, 4.0, 6.0, 4.0] .* 2

# Draw random weights
mean_vec = [1.0, 0.8, 0.6, 0.4] .* 2
cov_matrix = λ * I(L) # Isotropic covariance for simplicity
Random.seed!(42)
weights = rand(MvNormal(mean_vec, cov_matrix), n) # Size: (L, n)

phantom = KernelPhantom3D(weights, centers, gammas)

# Generate the forward setup
X = rand_evaluation_grid(s, r, n, m; seed=123)    # Evaluation grid for the forward operator
Q = rand_quaternion_grid(r, n; seed=123)          # Random quaternion grid for the forward operator
projections = xray_transform(phantom, X, Q) # Size: (s, r, n)

# Add noise to the projections
Random.seed!(456)
noise = σ * randn(size(projections))
noisy_projections = projections + noise
y = vec(noisy_projections); # Flatten the projections to a vector for the linear system

Representer Theorem Solver via MINRES

We solve the representer theorem for covariance estimation.

\[(\mathbf{K} \odot \mathbf{K} + \lambda \mathbf{I}) \mathbf{A} = \mathbf{y} \odot \mathbf{y}.\]

block_sizes = repeat([s * r], n);
K = BlockMatrix{Float64}(undef, block_sizes, block_sizes);
build_gram_matrix!(K, X, Q, γ);

y_centered = y
y_block = BlockVector(y_centered, block_sizes)
Y = y_block ⊙ y_block

using Krylov

K_tens = CovFwdTensor(K)
Y_zero = zero_block_diag(block_sizes)
kc_cov = KrylovConstructor(Y_zero)
workspace_cov = MinresWorkspace(kc_cov)


println("Processing Covariance Estimation for γ = $gamma_val")
# MINRES solver
@time minres!(workspace_cov, K_tens, Y; history=true, itmax=20)
A_sol = Krylov.solution(workspace_cov)

Perform Functional PCA

Once the representer coefficients $\mathbf{A}$ are computed, We then perform fPCA to extract the representing coefficients of leading eigenfunctions and reconstruct their corresponding 3D functions.

println("Performing Functional PCA")
Λ, V = fpca(10, A_sol, K; itmax=100)

F_eigs = [Array{Float64}(undef, m, m, m) for _ in 1:3]
for k in 1:3
    println("Reconstructing Eigenfunction $k")
    @time xray_recons!(F_eigs[k], V[:, k], X, Q, gamma_val)
end

3D Reconstruction

Once the representer coefficients $\mathbf{a}$ are computed, the estimated continuous 3D function can be evaluated over a regular voxel grid to form the final volume.

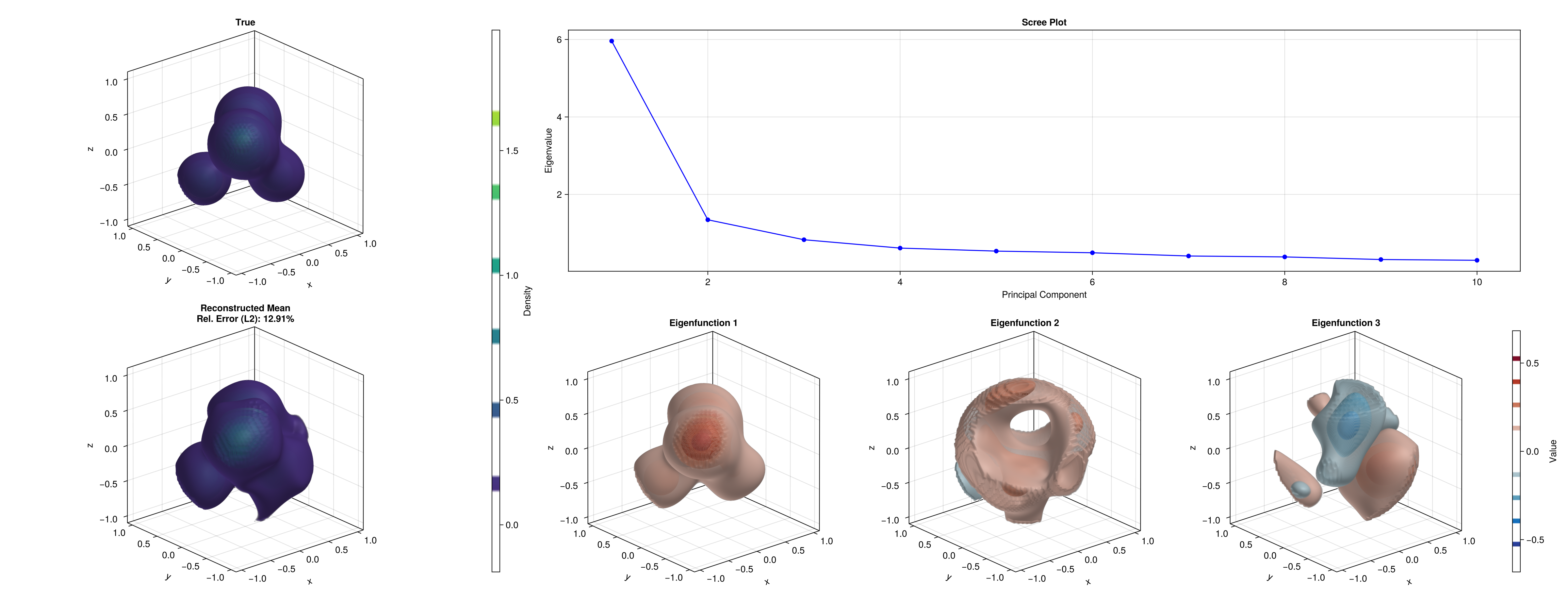

The resulting reconstructed volume can then be visualized alongside the ground-truth 3D phantom using GLMakie.jl.

using GLMakie

fig = Figure(size=(2400, 1000))
bounds = (-1.0, 1.0)

gl_top = fig[1:2, 1] = GridLayout()
gl_scree = fig[1, 2:3] = GridLayout()
gl_bot = fig[2, 2:3] = GridLayout()

# Top row
ax1 = Axis3(gl_top[1, 1], title="True", aspect=:data)
# alpha=0.4 to see inside.
vol1 = contour!(ax1, bounds, bounds, bounds, F_true,
    levels=6,
    colormap=:viridis,
    alpha=0.4)

ax_mean = Axis3(gl_top[2, 1], title="Reconstructed Mean\nRel. Error (L2): $(round(rel_error * 100, digits=2))%", aspect=:data)
vol_mean = contour!(ax_mean, bounds, bounds, bounds, F_recon, levels=6, colormap=:viridis, alpha=0.4)
Colorbar(gl_top[1:2, 2], vol_mean, label="Density")

ax_scree = Axis(gl_scree[1, 1], title="Scree Plot", xlabel="Principal Component", ylabel="Eigenvalue")
scatterlines!(ax_scree, 1:10, Λ, color=:blue, markersize=10)

# Bottom row (Eigenfunctions)
global_max_val = maximum(maximum(abs, F) for F in F_eigs)
global_max_val = global_max_val == 0 ? 1.0 : global_max_val

# Avoid zero level to prevent a massive block covering the whole volume
eig_levels = [-0.8, -0.6, -0.4, -0.2, 0.2, 0.4, 0.6, 0.8] .* global_max_val

vol_eig = nothing
for k in 1:3
    ax_eig = Axis3(gl_bot[1, k], title="Eigenfunction $k", aspect=:data)
    F_eig = F_eigs[k]
    vol_eig = contour!(ax_eig, bounds, bounds, bounds, F_eig, levels=eig_levels, colormap=:balance, colorrange=(-global_max_val, global_max_val), alpha=0.3)
end
Colorbar(gl_bot[1, 4], vol_eig, label="Value")

display(fig)

save_path = joinpath("..", "docs", "src", "assets", "cov_fpca_results.png")
save(save_path, fig)

Executing this code will open an interactive 3D window allowing you to explore the reconstructed density contours. For the complete, runnable script, please refer to examples/test_cov.jl in the package repository.
