Noiseless 3D Reconstruction

This tutorial demonstrates how to estimate the 3D function from tomographic projections using the RKHS representer theorem and iterative Krylov subspace solvers.

To maintain a clear focus on the solver mechanics, this example uses a deterministic inverse problem framework that excludes measurement noise and functional randomness.

Data Generation

Setup Global Parameters

n = 1       # Single Deterministic Function
r = 50      # Number of quaternions
s = 100      # Number of evaluation points per viewing angles
m = 50      # Resolution for reconstruction
L = 4       # Number of Gaussian components in the phantom
γ = 10.0    # Kernel bandwidth for RKHS framework

3D Phantom and X-ray Transform

using HeteroTomo3D, BlockArrays, LinearAlgebra

centers = [
    (0.3, 0.3, 0.3),
    (-0.3, -0.3, 0.3),
    (-0.4, 0.4, -0.4),
    (0.3, -0.3, -0.3)
]
weights = reshape([1.0, 0.8, 0.6, 0.4], L, n)
gammas = [5.0, 4.0, 6.0, 4.0]

phantom = KernelPhantom3D(weights, centers, gammas)

# Generate the forward setup
X = rand_evaluation_grid(s, r, n, m)    # Evaluation grid for the forward operator
Q = rand_quaternion_grid(r, n)          # Random quaternion grid for the forward operator
projections = xray_transform(phantom, X, Q) # Size: (s, r, n)
y = vec(projections) # Flatten the projections to a vector for the linear system

Representer Theorem Solver via MINRES

The mean function is estimated by solving the system

\[(\mathbf{K} + \lambda \mathbf{I}) \mathbf{a} = \mathbf{y}.\]

block_sizes = repeat([s * r], n);
K = BlockMatrix{Float64}(undef, block_sizes, block_sizes);
build_gram_matrix!(K, X, Q, γ);

using Krylov

a_zero = zeros(size(K, 1)) # Create a zero initial guess for MINRES
kc_mean = KrylovConstructor(a_zero)
workspace_mean = MinresWorkspace(kc_mean)
minres!(workspace_mean, K, y; history=true, itmax=20)

a_sol = Krylov.solution(workspace_mean)
stats_mean = Krylov.statistics(workspace_mean)

3D Reconstruction

Once the representer coefficients $\mathbf{a}$ are computed, the estimated continuous 3D function can be evaluated over a regular voxel grid to form the final volume.

HeteroTomo3D.xray_recons — Function

xray_recons(z::NTuple{3,T}, coefficients::Vector{T}, X::EvaluationGrid{I}, Q::QuaternionGrid{T}, γ::T) where {T<:Real, I<:Integer}

Evaluates the reconstruction at a single point z in the unit ball using the mean representer theorem.

Arguments

coefficients::Vector{T}: Coefficients of length s * r * n for the representer theorem expansion.
X::EvaluationGrid{I}: The evaluation grid of size (s, r, n).
Q::QuaternionGrid{T}: The rotation grid of size (r, n).
γ::T: Bandwidth parameter for Gaussian kernel.

source

HeteroTomo3D.xray_recons! — Function

xray_recons!(F::AbstractArray{T}, coefficients::Vector{T}, X::EvaluationGrid{I}, Q::QuaternionGrid{T}, γ::T) where {T<:Real, I<:Integer}

Evaluates the reconstruction across 3D grid points using the mean representer theorem.

Arguments

F::AbstractArray{T}: The output array for the reconstruction of size (m, m, m).
coefficients::Vector{T}: Coefficients of length s * r * n for the representer theorem expansion.
X::EvaluationGrid{I}: The evaluation grid of size (s, r, n).
Q::QuaternionGrid{T}: The rotation grid of size (r, n).
γ::T: Bandwidth parameter for Gaussian kernel.

source

The resulting reconstructed volume can then be visualized alongside the ground-truth 3D phantom using GLMakie.jl.

using GLMakie

F = Array{Float64}(undef, m, m, m);
xray_recons!(F, a_sol, X, Q, γ);

F_true = zeros(Float64, m, m, m);
for iz in 1:m
    z3 = 2.0 * (iz - 1) / (m - 1) - 1.0
    for iy in 1:m
        z2 = 2.0 * (iy - 1) / (m - 1) - 1.0
        for ix in 1:m
            z1 = 2.0 * (ix - 1) / (m - 1) - 1.0

            # Unit ball cutoff matching the reconstruction
            if z1^2 + z2^2 + z3^2 > 1.0
                continue
            end

            val = 0.0
            for l in 1:L
                c = phantom.centers[l]
                dist2 = (z1 - c[1])^2 + (z2 - c[2])^2 + (z3 - c[3])^2
                val += phantom.weights[l, 1] * exp(-phantom.gammas[l] * dist2)
            end
            F_true[ix, iy, iz] = val
        end
    end
end

# Compute the L2 relative error strictly in-place
squared_diff = sum(abs2(F[i] - F_true[i]) for i in eachindex(F))
squared_norm = sum(abs2, F_true)

rel_error = sqrt(squared_diff / squared_norm)

# 2. Plot Side-by-Side Volumes using Isosurfaces
fig = Figure(size=(1000, 500))
bounds = (-1.0, 1.0)

ax1 = Axis3(fig[1, 1], title="True 3D Phantom", aspect=:data)

vol1 = contour!(ax1, bounds, bounds, bounds, F_true,
    levels=6,
    colormap=:viridis,
    alpha=0.4)

ax2 = Axis3(fig[1, 2], title="Reconstructed Phantom (Rel. Error (L2): $(round(rel_error * 100, digits=2))%)", aspect=:data)
vol2 = contour!(ax2, bounds, bounds, bounds, F,
    levels=6,
    colormap=:viridis,
    alpha=0.4)

Colorbar(fig[1, 3], vol2, label="Density")

display(fig)

Executing this code will open an interactive 3D window allowing you to explore the reconstructed density contours. For the complete, runnable script, please refer to examples/test_mean_reconstruction.jl in the package repository.

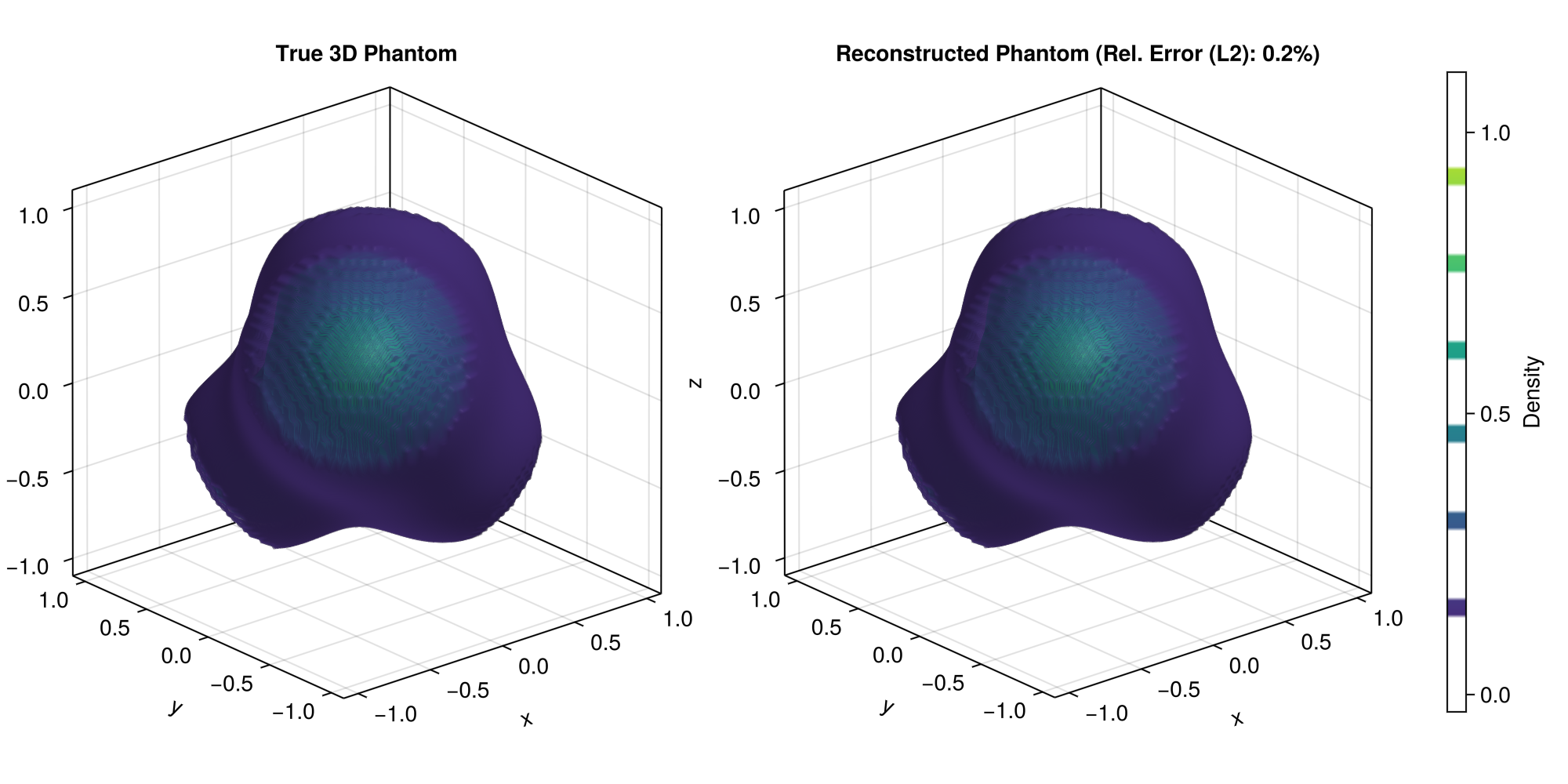

3D Reconstruction Simulation
